Immersion cooling
Crypto mining container

Scroll down
UP TO 40% HASH RATE INCREASE
Overclocking is permanently sustainable with immersion cooling mining technology. Thermal loads are maintained, and ASICs never overheat.
WORK IN ANY WEATHER CONDITIONS
Weather extremes as low as -40°F and as high as 120°F are safe and operational for a liquid-cooled bitcoin miner, unlike air miners.
EXTENDED EQUIPMENT LIFESPAN
Dust-free immersion liquid cooling for crypto mining reduces cleaning and corrosion, increasing crypto mining hardware lifespan by 4-5 years.
ABSOLUTE NOISE LEVEL REDUCING
Fans create most of the noise of crypto miners, and immersion liquid cooling mining systems eradicate fans and fan noise.

EZ IMMERSION COOLING MINING CONTAINERS
PROVIDE up to +40%
LONG-TERM ROI

Air cooling container
  • 370 SLOTS HR 3.5KWS 1.5MWS POWER
  • 84 DB AVG
  • STANDARD
  • HIGHER OPERATIONAL COSTS
  • -40 TO +100 °F
  • HIGHER OPERATIONAL COSTS, LOWER COST OF A CONTAINER
vs
  • POWER CAPACITY & HASH RATE
  • NOISE LEVEL
  • EQUIPMENT LIFESPAN
  • ENERGY SAVINGS ON COOLING
  • OUTSIDE TEMPERATURE RANGE
  • OPERATIONAL COSTS

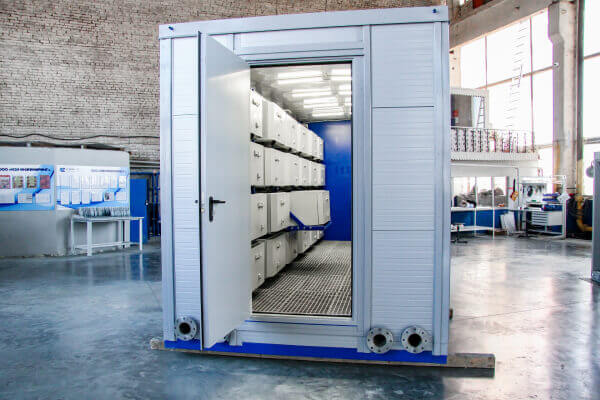

Immersion cooling container
  • 40% HASH RATE INCREASE 288 SLOTS HR 4.9 KWS 1.5 MWS POWER
  • 100% NOISE REDUCTION FOR MINERS
  • UP TO 175%
  • 25% - 35% ENERGY SAVINGS ON COOLING
  • -40 TO +120 °F
  • THE LOWEST LONG-TERM OPERATIONAL COSTS
* All numbers are taken from our in-house testing of equipment and may vary due to multiple factors.
Air cooling container
vs
Immersion cooling container
POWER CAPACITY & HASH RATE
  • 370 SLOTS HR 3.5KWS 1.5MWS POWER
  • 40% HASH RATE INCREASE 288 SLOTS HR 4.9 KWS 1.5 MWS POWER
NOISE LEVEL
84 DB AVG
100% NOISE REDUCTION FOR MINERS
EQUIPMENT LIFESPAN
STANDARD
UP TO 175%
ENERGY SAVINGS ON COOLING
HIGHER OPERATIONAL COSTS
25% - 35% ENERGY SAVINGS ON COOLING
OUTSIDE TEMPERATURE RANGE
-40 TO +100 °F
-40 TO +120 °F
OPERATIONAL COSTS
HIGHER OPERATIONAL COSTS, LOWER COST OF A CONTAINER
THE LOWEST LONG-TERM OPERATIONAL COSTS
* All numbers are taking from our in-house testing of equipment and may vary due to multiple factors.
Technical specifications

SMARTBOX™ 1500 i Technical specifications

US
Europe
Weight
17 637 lbs
8 000 kg
Dimensions (length width height)
21’11” x 8’2” x 9’8”
670 х 250 х 295 cm
Power Input
up to 1 440 kWh
Miners slots (S19)
288
Thermal power (heat sink)
1 500 kWh
Liquid temperatureinlet
(outside +95 °F) 113 °F
(outside +35 °C) 45 °C
Liquid temperatureoutlet
(outside +95 °F) 158 °F
(outside +35 °C) 70 °C
Request a custom quote
Improving
Improvingyour long-term ROI
from crypto mining
vent rad box rad lap vent lap box lap

Why our customers choose
immersion cooling technology
for crypto mining

The technology of immersion cooling for crypto mining containers allows you to remove heat from mining equipment by immersing it in a liquid.

How it works
:

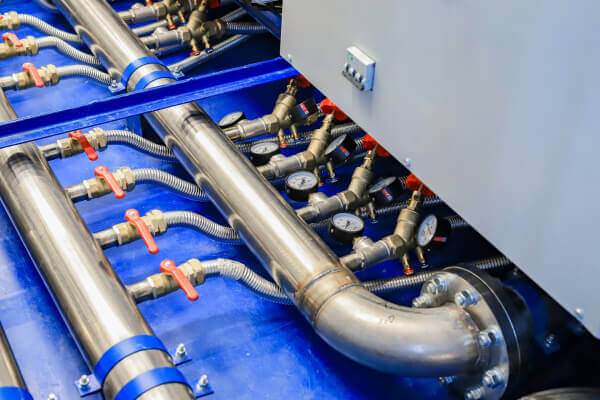

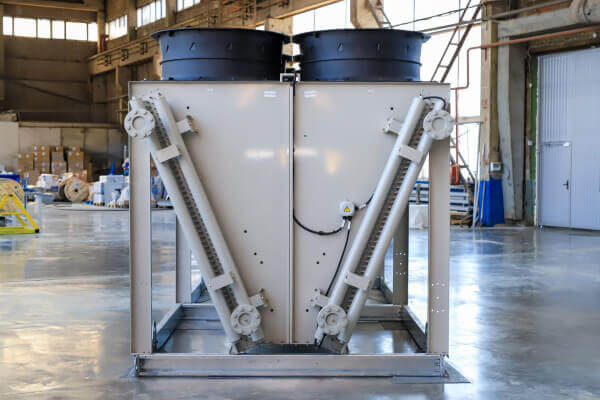

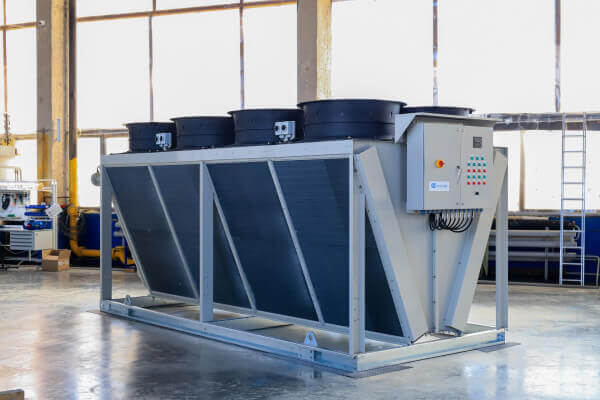

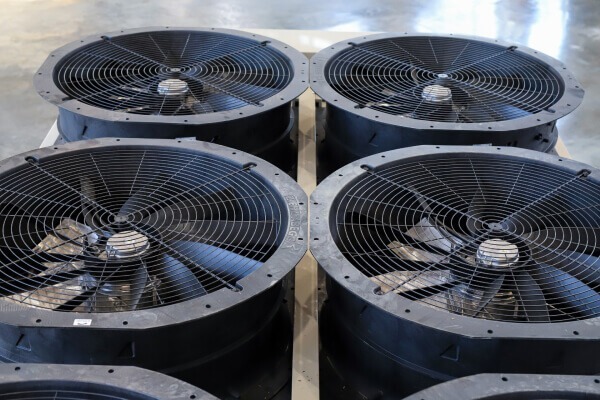

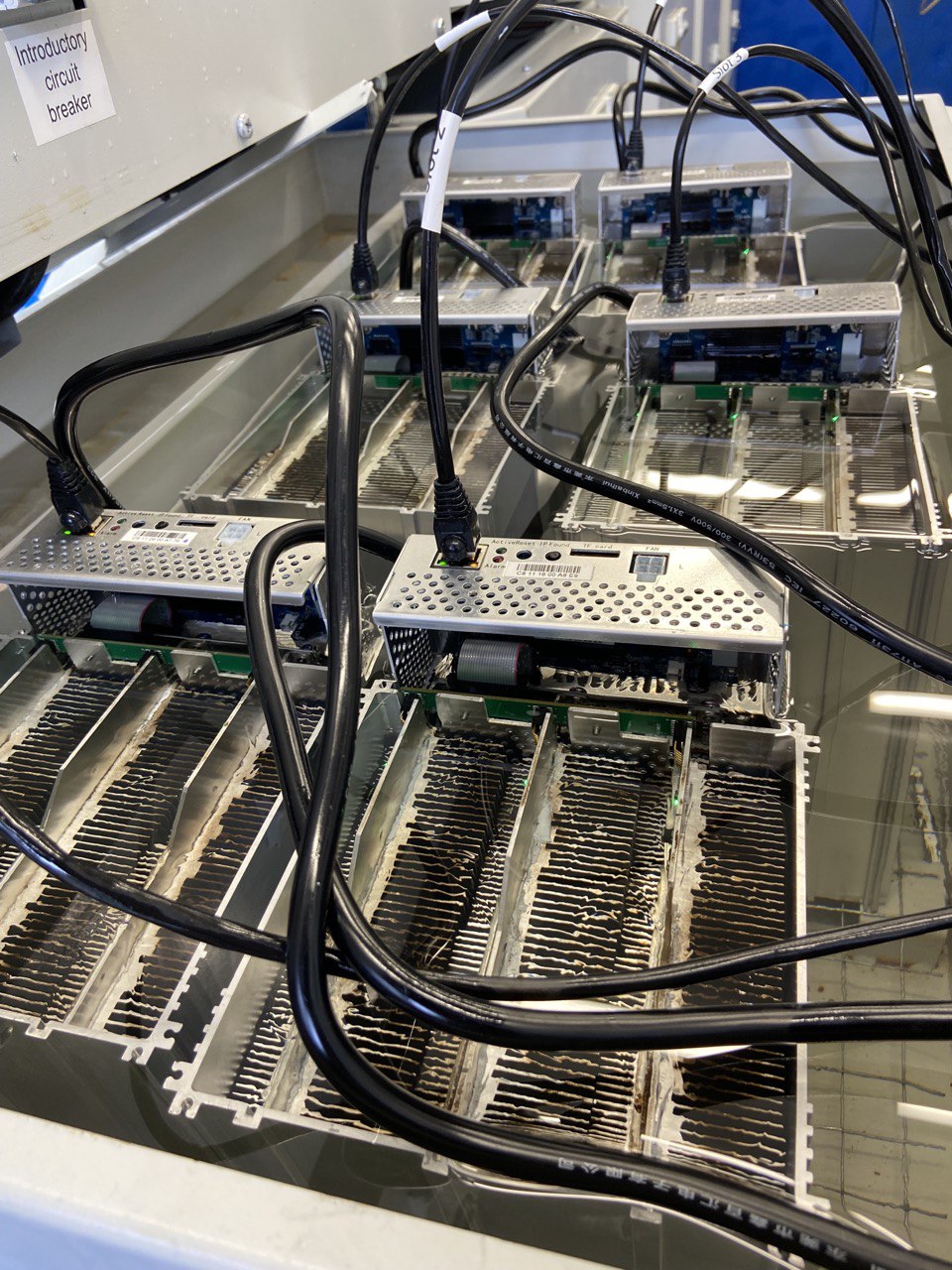

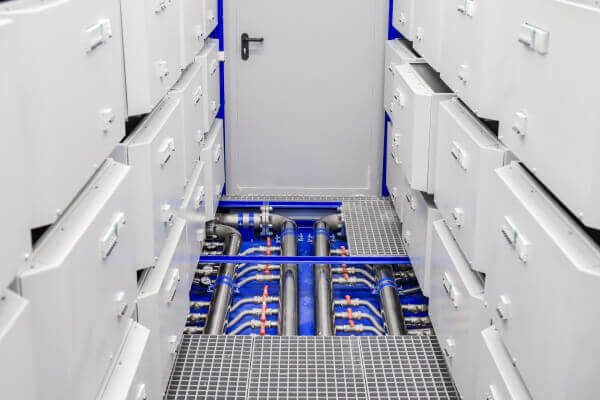

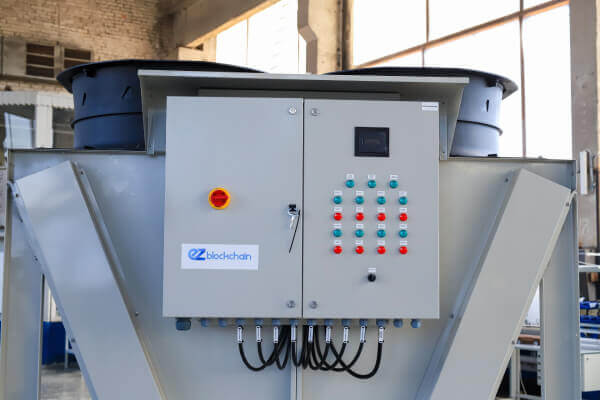

  • CRYPTO MINING EQUIPMENT is installed into the immersion cooling Cell. The Immersion liquid coolant circulates in the Cell in a closed circle, the heat is removed through an individual PLATE HEAT EXCHANGER for each cell to the general circuit and goes to the DRY COOLER. Higher heat capacity and constant circulation of the immersion liquid coolant for optimal heat dissipation ensure trouble-free operation of the equipment.
  • Due to the more stable operation of mining equipment and overclocking up to 40%, immersion cooling technology shows higher long-term profitability and has a lot of advantages compared to traditional air-cooling.

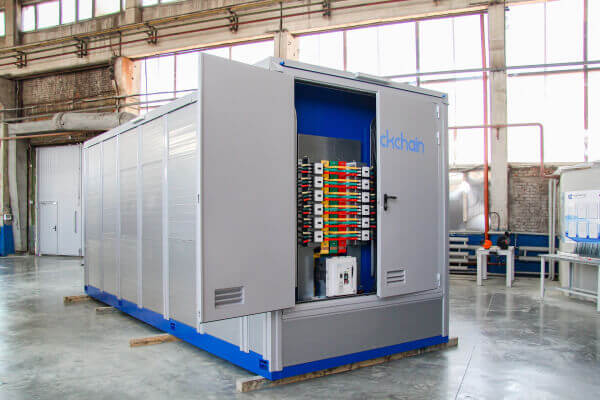

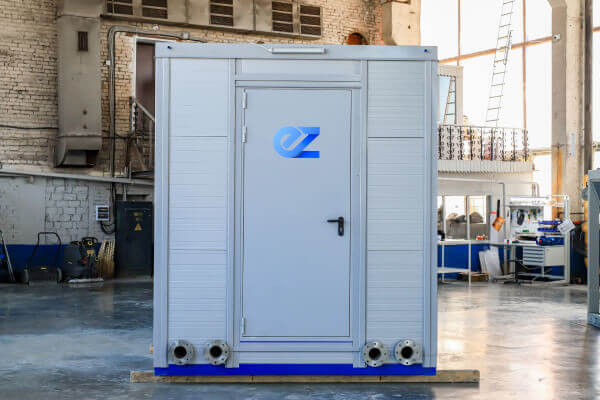

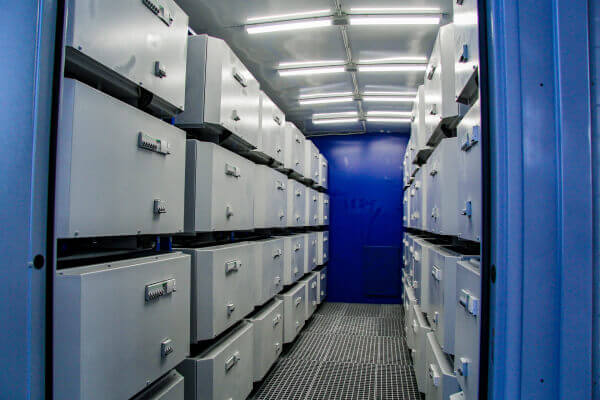

Immersion cooling Smartbox™ in a nutshell
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#

benefits of immersion cooling container

Achieve a PUE
<1.02

PUE represents the ratio of the total energy used by a data center facility to the energy delivered to crypto mining equipment. EZ Blockchain™ allows you to achieve a certified PUE <1.02, improving your data center efficiency.

40% Hash Rate
Increase

Air mines are prohibited from significant overclocking because of the ASICs’ thermal load. However, overclocking and fine-tuning for mines using immersion liquid cooling for mining allows for 40% higher hash rates. In addition, no fans or air handling results in less energy wasted.

Longer
Equipment Lifespan

Increases hardware lifespan by 4-5 years by eliminating contamination, overheating, and corrosion. Air crypto mining farms are filled with airborne particles that are sucked into the heat sinks of each ASIC, which leads to overheating and a shortened lifespan. Immersion liquid cooling mining supports ASICs operating at maximum capacity for longer than ever.

100% noise and dust Reduction

Immersion cooling Bitcoin miners provide absolute noise reduction. This is because the fans, which are the primary sources of noise, are removed before immersion. Liquid-cooled Bitcoin miners are also dust-free. This increases the lifespan of equipment and saves the trouble of regular cleaning.

Smart
Heat Utilization

Our immersion liquid cooling system for crypto mining has been conceived to reduce heat simultaneously with smartly recapturing and reusing that heat for other purposes, such as heating the space hosting the data center or the surrounding urban and industrial areas.

-50%
Costs on CAPEX

EZ Blockchain immersion liquid cooling solutions are rapidly deployable in raw space without the need for raised floors. They can easily integrate into an existing data center or warehouse or even in an office with minimum retrofitting.

Check it out

If you want to maximize the hash rate of your miners, you are in the right place.

Our Immersion cutting-edge technology allows us to increase hash rates, cut down on heat and noise generation and increase the longevity of equipment.

All while increasing your hash rates and ROI.

Alex Midence Data Center Supervisor
Alex Midence

FREQUENTLYASKEDQUESTIONS

What type of immersion liquid cooling do you use?

EZ solutions are based on single-phase immersion cooling. We chose this technique because it aligns better with our core values of sustainability and has a positive impact on the environment. In addition, single-phase immersion cooling system for sale allows the use of a biodegradable, non-toxic, non-flammable, non-corrosive liquid with a life span longer than the average life of many data centers.

What are the operational benefits?

Our solution increases hardware lifespan by 4-5 years by eradicating contamination, overheating, and corrosion. Most air mining farms are filled with airborne particulate matter, which is quickly sucked into the heat sinks of each ASIC. As a result, ASICs relative cooling capacity is drastically reduced, which leads to overheating and a shortened lifespan for the ASICs.

Why is Immersion Cooling more efficient than Air Cooling?

Because liquid can be thousands of times more efficient than air in transfer of heat, especially if it’s in motion.

  • – Dust and other particles do not accumulate in equipment
  • – Equipment is kept from overheating, allowing overclocking
  • – The container can sustain any extreme temperature

What are the business benefits?

The business benefits are as much about the ROI as as their improved efficiency, and include:

  • – A certified mPUE 1.02
  • – Up to 35% saving on cooling costs (no fans, more efficient primary/secondary cooling)
  • Lowest long-term operational costs of any mining system
  • – Up to 25-40% saving on CAPEX building costs
  • – Up to 175% increase in IT hardware life-span

What are the dimensions of Immersion Smartbox™, dry coolers, etc.?

  • Immersion cooling container (Smartbox™ 1500i) is 21’11” L x 8,2” W x 9,8” H
  • The dry cooler is 16.3” L x 16.3” W x 7.64” H

How many S19 miners fit in Smartbox™ 1500i ?

There are 288 Miner Slots in each EZ “water” cooling container.
