EZ Smartbox Mobile Mining Unit
EZ SMARTBOX 3.0
Advantages and features
model 3000
model 1500
model 600
General
Miners slots with up to 3.5 kW/h power consumption
768
384
175
Power Input up to kWh
3000
1500
620
3 phase power connection to outside access 6 Main Breakers
Connection type: 3 hot wires 1 ground, each phase Volts
415 / 240 or 480 / 277
415 / 240 or 480 / 277
415 / 240 or 480 / 277
Grounding
Outside temperature range, °F
- 40 °F to + 125 °F
- 40 °F to + 125 °F
- 40 °F to + 100°F
Electrical
Breakers
12 400A Main Breakers
768 Individual Miner 20A 1P breakers
6 400A Main Breakers
384 Individual Miner 20A 1P breakers
2 Main Breakers 630A
175 Individual Miner 20A 1P breakers
Power Cables
C19 power cord from 20A breaker to crypto miner, included for each miner optional C13 splitter cables
AWG: 14
UL listed and CSA approved
Cables are fully rated for 250 Volt / 15 Amp applications
Equipment racks included
Networking routers switches
Ubiquiti Unifi Network
Ubiquiti Unifi Network
Ubiquiti Unifi Network
Cables
Soundproofing and thermal insulation of walls, ceiling, floor
Dimensions
Length, Width, Height in feet
40 x 8 x 9’8”
20 x 8 x 9’8”
20 x 8 x 8.5”
Weight
9,250 kg or 20,000 lbs
4,650 kg or 10,000 lbs
3,450 kg or 7,600 lbs
Security
Video surveillance system Included
2 cameras inside plus 1 external
2 cameras inside plus 1 external
2 cameras inside plus 1 external
Cooling system
Automatic exhaust air system
Industrial grade exhaust fans
18
9
10
Air flow up to ft3 per minute
423, 000
211, 500
118, 000
Air filtering system
Humidity and temperature sensors
Show all specifications
Why choose our solution
You are no longer dependent on the cost of an energy source
EZ Smartboxes are fully mobile data centers, EZ to transport, each Smartbox is built meeting all ISO standards and meets all international public road transportation codes.
You may haul the mobile data center on a flatbed. To any source of affordable electricity anywhere in the world.
Infrastructure investment is less risky and cost effective
Investing in a warehouse type crypto mining farm connected to the grid is twice more expensive and risky. Your local power provider may increase the rate of electricity or ban crypto mining in your area leaving all your infrastructure investment deadlocked.
Fully plug and play solution with management contract (Optional)
You are not only buying a mobile data center you are partnering with EZ Blockcahin, we can help you develop a full crypto mining project from scratch and add a full management of your crypto mining operation for a small monthly fee.
You will sleep well with our team providing 24/7 monitoring and management.
Comfortable terms and conditions
Contrary to the industry standards, we give very flexible terms of payment, the manufacturing starts after a down payment and you pay for the rest based on the progress of the manufacturing.
Fast installation
Smartbox Delivery
Smartbox mobile data center comes in 2 sizes, 20 ft container size unit and 40 ft container size unit.
Both units can be easily transported on a flatbed trailer with a truck capable to pull 10,000 lbs weight for Smartbox 1500 and 20,000 weight for Smartbox 3000.
Smartbox
Site
Preparation
Smartbox has to be installed on any leveled flat surface without debris. Temporary concrete pads may be put under th.
Smartbox for a more stable support in soft ground areas. Smartbox can also be fully operational on a trailer.
Smartbox
offloading /
installation
Every Smartbox is equipped with four hook points to attach a crane, so the Smartbox can be loaded and unloaded safely and easily.
Smartbox is loaded and offloaded with any crane capable to lift 5 tons for Smartbox 1500 and 10 tons for Smartbox 3000.
Smartbox
connection
License electrician has to connect Smartbox to the transformer or to the generator using the cables. EZ Smartbox has the connection frame easily accessible from outside the electrical room.
Each Smartbox section has a 800 Amp breaker, Smartbox 1500 has 3 section, Smartbox 3000, 6-accordingly.
Materials
EZ Smartbox is a durable, structured steel frame and finished with high quality sandwich panels.
There are metal powder coated shelves inside
IT infrastructure
Our Smartbox is equipped with the newest internet infrastructure provided by Ubiquity as a standard.
The router has a built in firewall, each unit can have its own network security.
Ethernet cables are connected to each rack for EZ installation process
Electrical components
EZ Smartbox Inside electrical infrastructure is protected by high quality circuit breakers. There are at least three layers of surge and heat protections for the equipment inside.
EZ Smartbox copper wiring is designed for continuous operation with minimum power losses. Hyundai, ABB & Schneider Electric are the top choices for electrical circuit breakers in a standard Smartbox.
EZ Blockcahin provides a full setup and a start up guide and will send a tech
support person to help to coordinate the installation of the Smartbox, travel expenses up to
$1000 will be covered by the company.
Limited manufacturers warranty is provided for each electrical component of
the unit. We keep stock of spare parts to be able to send the replacement
Affordability
$75/KW all in
Warehouse crypto mining facility
Cost to build physical crypto mining infrastructure in the warehouse starts
from $120/KW plus rent payments.
Smartbox crypto mining solution
Smartbox crypto mining infrastructure starts at $75/KW all in, 37.5%
cheaper, which equals to more than ⅓ quicker ROI on the CAPEX infrastructure.
Low depreciation
Full scrap value after 10 years of value is still 50% of the whole
infrastructure because of the high price of high quality electrical components.
Easy plug and play
Lead time from contract signed to delivery 8-12 weeks plug and play, ready
to go.
Client-oriented terms of payment
Very comfortable client oriented terms of payment, you pay in stages based
on the production progress. Special terms for larger long term projects with special
financing options.
Produced in Europe
Our company produces Smartboxes in Estonia, near Tallin.
SmartBox selector
Type of miners
Quantity
Make selection

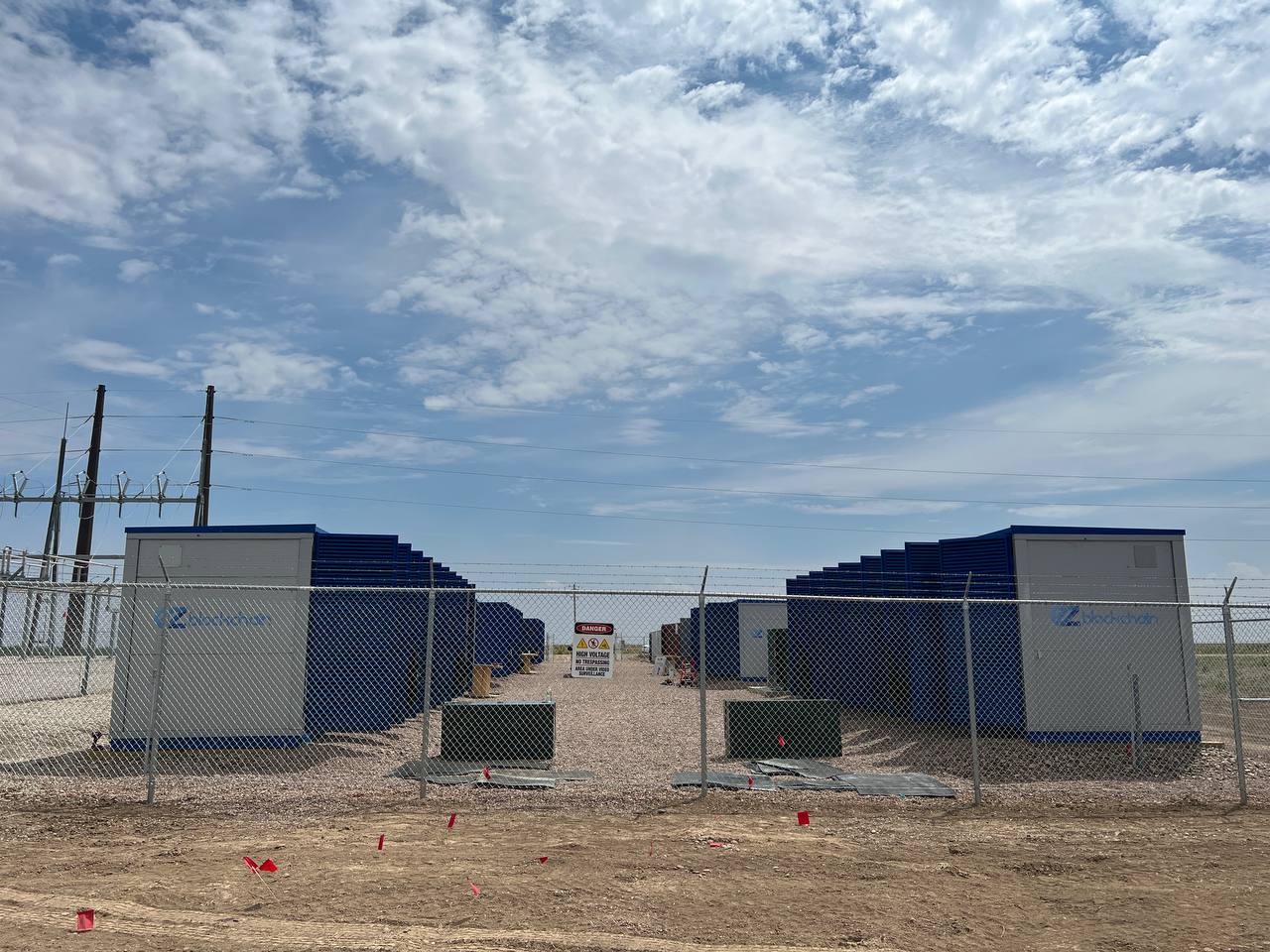

EZ SmartBox finalized cases on the map
Upstate NY
Location
Client’s goal was to eliminate flaring at their gas processing plant and monetize
the flared gas in an alternative way by doing crypto mining onsite
Read case
Northern Indiana
Location
Company’s objective was to test a rapid deployment of the crypto mining
project
using multiple models of mobile data centers in remote area
Read case
Uinta Basin
Location
Client’s goal was to eliminate flaring at their gas processing plant and
monetize
the flared gas in an alternative way by doing crypto mining onsite
Read case
Is cryptocurrency
mining regulated?
mining regulated?
Bitcoin mining is fully regulated by FinCen
Bitcoin mining is fully regulated by FinCen
Bitcoin mining is not considered money transmitting business according to FinCen memo of 2014
The user is free to use the mined virtual currency or its equivalent for the user’s own purposes, such as to purchase real or virtual goods and services for the user’s own use.
Bitcoin mining is taxed as a regular income
Bitcoin mining is taxed as a regular income
The main reason Bitcoin can considered as a safe investment is because IRS has a clear guidance on how to tax Bitcoin income and other cryptocurrency
Under § 61, all gains or undeniable accessions to wealth, clearly realized, over which a taxpayer has complete dominion, are included in gross income.
Bitcoin trading risks are hedged with Bitcoin futures and Bitcoin options
Bitcoin trading risks are hedged with Bitcoin futures and Bitcoin options
In response to growing interest in cryptocurrencies and customer demand for tools to manage bitcoin exposure, CME options on Bitcoin futures (BTC) are now trading.
The value of options on Bitcoin futures is based on the regulated CME CF Bitcoin Reference Rate (BRR) and settles into actively traded Bitcoin futures.
Bitcoin becomes more adopted by US
Bitcoin becomes more adopted by US
State of Ohio allows its residents to pay taxes in Bitcoin
That is one of the main proofs of Bitcoin being heavily adopted by the governments. Ohio became the first state to accept bitcoin for tax bills, a show of support for a technology that has garnered lots of hype but failed to gain traction as a form of payment.
State of New York clearly outlines bitcoin mining by issuing a license for bitcoin mining
In June 2015, the New York State Department of Financial Services (“DFS”) issued its virtual currency regulation, 23 NYCRR Part 200, under the New York Financial Services Law. Since 2015, under that “BitLicense” regulation or the limited purpose trust company provisions of the New York Banking Law, DFS has granted numerous virtual currency licenses and charters to ensure that New Yorkers have a well-regulated way to access the virtual currency marketplace and that New York remains at the center of technological innovation and forward-looking regulation.
Wyoming is the first and only state to have enacted legislation providing a comprehensive framework supportive of blockchain innovation.
13 blockchain bills enacted during legislative sessions in years 2018 and 2019.
Case study
All cases

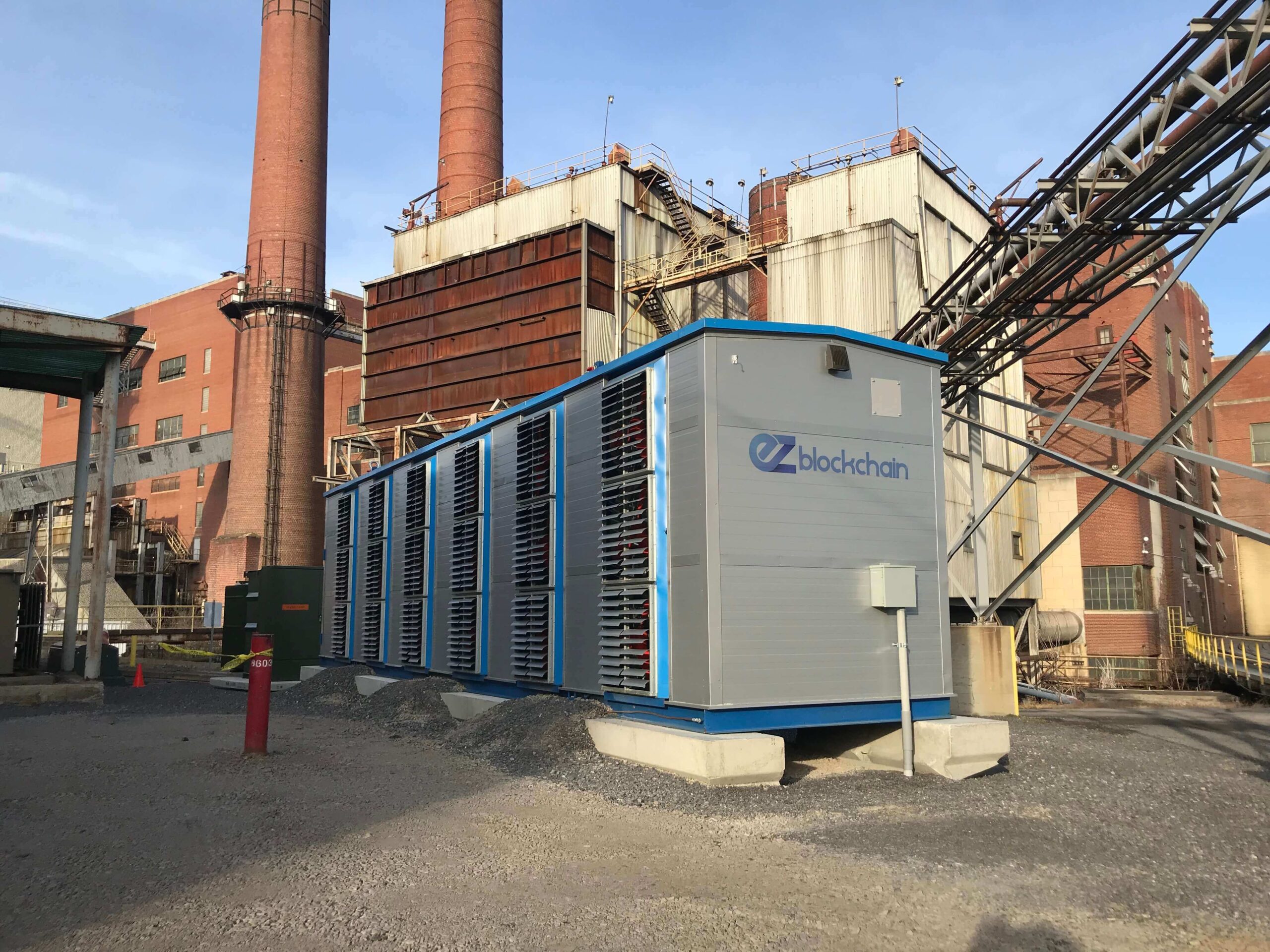

upstate ny location Objective
Power generation company was looking for the solution to diversify its revenue and build a demand response system that can consume power at the off peak hours.
Solution
EZ Blockcahin’s redesigned the mobile data center with a unique shelving system and airflow system to bring its capacity up to 2.5 MWs, installing 720 x Bitmain S17 type miners. Our engineering team had to design a separate electrical room built from scratch to make the work of the electrical operations team simpler and safer. The design of the mobile data center was divided in 6 separate sections, each had its own autonomous electrical surge protection infrastructure to operate each section independently.
Company’s team developed a simple from operations perspective but complex from engineering perspective filter louvers door in each section. This optimized the effort of changing filters on a constant basis, reducing the amount of labor hours needed to perform the work.
Our HVAC engineers had to pick a special type of fan blades used for HVAC cooling system to minimize the sound output from the fans in a 100% mode. In addition a commercial VFD system was installed to optimize the fan RPM during night hours to minimize the noise when the temperature drops during the night.
our press
News
www.houstonchronicle.com
Cryptocurrency mining company eyes flared gas in Permian Basin
Chicago cryptocurrency mining company EZ Blockchain is eyeing the large volumes of wasted natural gas being burned in the Permian Basin of West Texas as a potential source of power for portable servers to create digital currencies and put them into circulation.
Jun 23, 2020
News
news.bitcoin.com

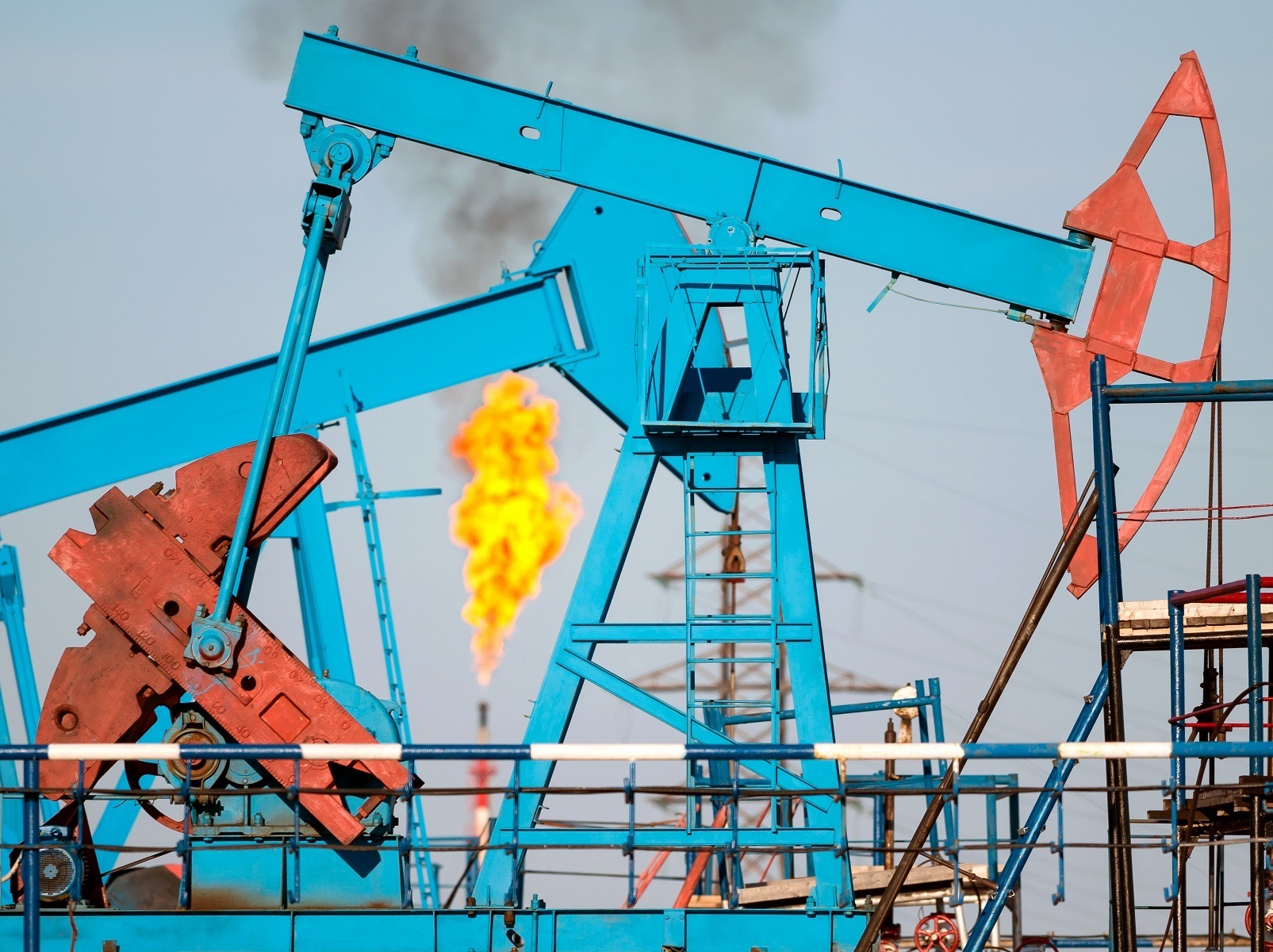

Chicago Company Mines at Oil Wells, Educates Producers About Bitcoin
Utilizing stranded gas to power bitcoin mining rigs at oil and gas wells is a promising business opportunity. It is profitable for all participating parties and beneficial for the environment. Not without challenges, this young industry is growing in energy-rich North America. Several companies are working to expand the niche and U.S.-based EZ Blockchain shared details about their progress.
Dec 06, 2019
News
news.bitcoin.com

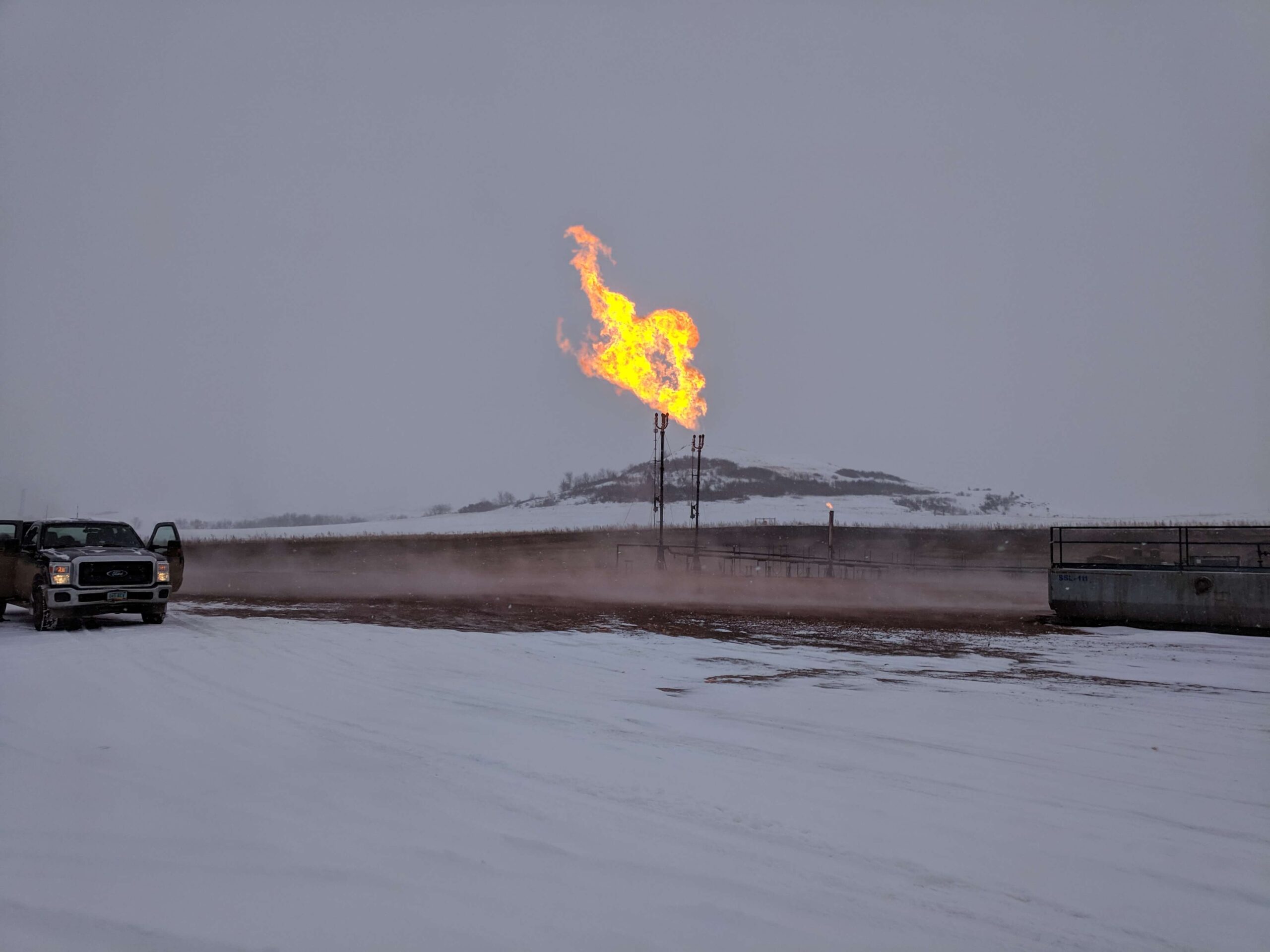

Bitcoin Mining Helps Oil Companies Reduce Carbon Footprint
