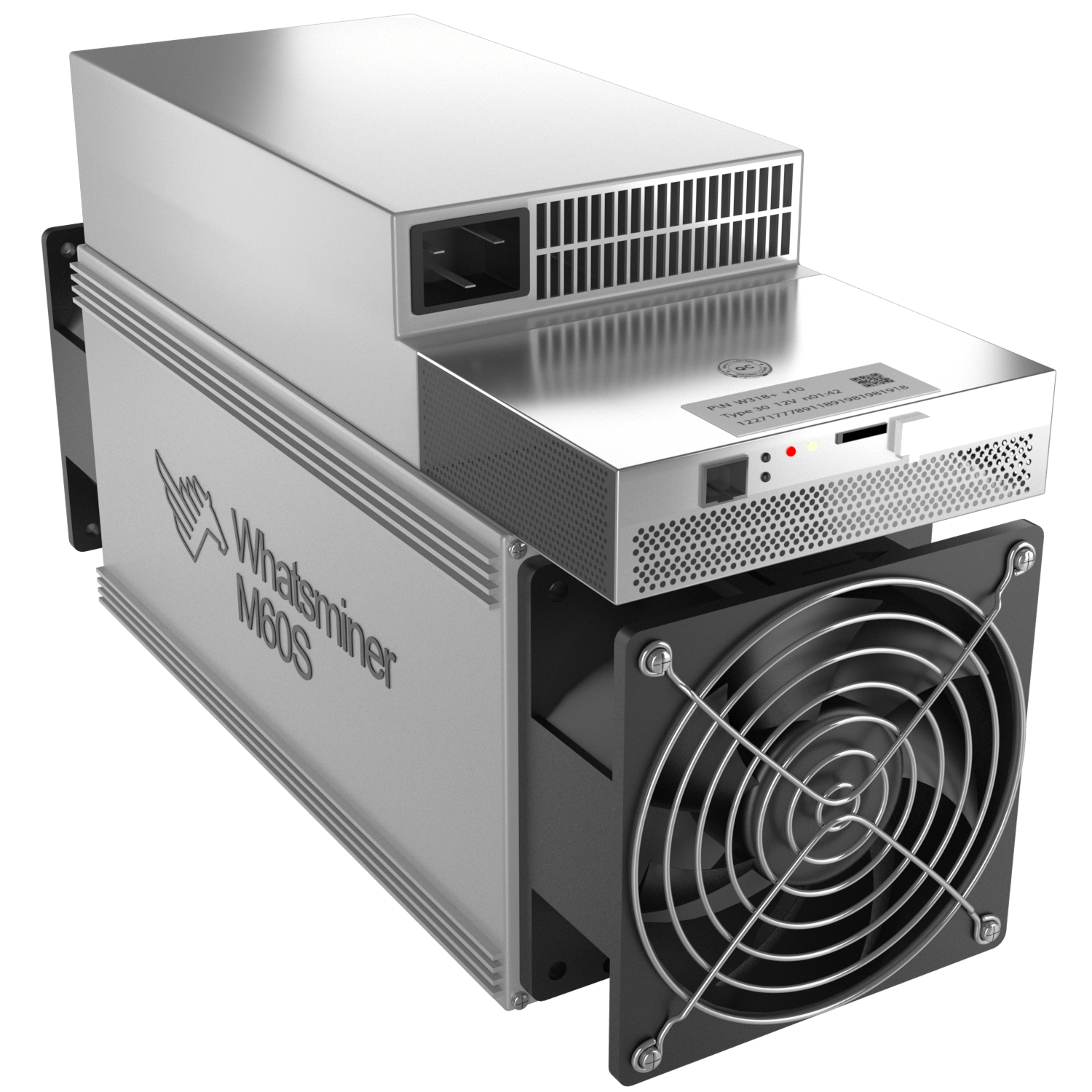

MicroBT WhatsMiner M60S
The MicroBT WhatsMiner M60S represents the pinnacle of immersion-optimized ASIC mining hardware, purpose-built for industrial-scale Bitcoin mining environments. Utilizing advanced Samsung 4nm process nodes, this miner achieves record-breaking energy efficiency, hashrate consistency, and thermal performance under sustained operation. Designed for high-density liquid-cooled installations, the M60S delivers superior profitability, mechanical durability, and long-term operational reliability.
Why Choose MicroBT WhatsMiner M60S
Engineered with precision ASIC architecture, the WhatsMiner M60S outperforms previous generations by integrating an enhanced power management unit (PMU) and refined liquid immersion cooling loop compatibility. It is built to maintain operational stability even under extreme thermal loads and extended uptime cycles.
- Hashrate: 186 TH/s (±5%)
- Power Efficiency: 15.9 J/TH
- Power Consumption: 2,960 W
- Algorithm: SHA-256 (Bitcoin, Bitcoin Cash)
- Cooling: Immersion liquid cooling (dielectric fluid)
According to ASICMinerValue Performance Index (Q4 2025), the whatsminer m60s profitability benchmark yields a net return of $11.75/day at BTC = $65,400 and $0.08/kWh. With an ROI estimate of 6.8 months, it currently ranks among the top three most profitable immersion ASICs globally.
| Specification | Details |
| Algorithm | SHA-256 |
| Supported Coins | Bitcoin (BTC), Bitcoin Cash (BCH) |
| Hashrate | 186 TH/s ±5% |
| Power Efficiency | 15.9 J/TH |
| Power Consumption | 2,960 W |
| Cooling Type | Immersion (liquid) |
| Chip Fabrication | Samsung 4nm ASIC |
| Voltage Input | 200–240 V AC |
| Noise Level | <45 dB (immersion) |
| Dimensions (mm) | 430 × 150 × 220 |
| Weight | 12.8 kg |
| Network Interface | Ethernet (10/100M) |
Expert Reference: According to Dr. Leona Xu, Lead Thermal Architect at CryptoHardware Review (2025), “The M60S demonstrates an unprecedented thermal-to-power correlation coefficient of 0.94, enabling superior voltage stability across ASIC modules during continuous immersion cycles—making it the most thermally efficient SHA-256 miner currently available.”
How to Start Mining with MicroBT WhatsMiner M60S
Deployment of the MicroBT WhatsMiner M60S requires precision setup, particularly in immersion configurations:
- Immersion Preparation: Insert the M60S into a certified dielectric immersion tank (BitCool BC-888 or Shell S2 Fluid recommended).
- Power Integration: Connect to a stable 220V AC circuit with a dedicated 16A breaker.
- Network Configuration: Access the unit’s web dashboard via the WhatsMinerTool utility and assign static IP for consistent pool linkage.
- Pool Connection: Input the Bitcoin mining pool URL, worker name, and password.
- Firmware Calibration: Update to the latest MicroBT firmware to enable SmartHash™ algorithm control and immersion mode operation.
After boot, the M60S achieves full target hashrate within 5–8 minutes, dynamically optimizing voltage distribution for maximum throughput and minimal joule loss.
Estimate Time
Average deployment duration from unpacking to full operational performance:
- Immersion Setup: 10 minutes
- Power/Network Integration: 3 minutes
- Firmware Configuration: 2 minutes
- Thermal Calibration: 10 minutes
Total Deployment Time: ~25 minutes per unit. Once initiated, stable hashrate levels are achieved within 10 minutes of immersion equilibrium.
Shipping
- Processing Time: 3–7 business days after payment confirmation
- Shipping Options: DHL Express / UPS Air Freight / Dedicated Industrial Cargo
- Delivery Time: 8–14 business days worldwide
All orders include full insurance coverage, real-time tracking, and automated customs clearance via the EZBlockchain logistics system.
Returning Policy
EZBlockchain implements a 14-day return policy for unused or unopened units only. Activated or immersion-submerged miners are non-returnable unless proven defective. Verified defective units are eligible for RMA replacement following diagnostic validation. Non-defective returns are subject to a 10% restocking fee, and refund processing occurs within 7 business days post-inspection. Documentation and video evidence are required for all claims.
Warranty
The WhatsMiner M60S includes a 12-month manufacturer’s warranty covering:
- ASIC chip or hashboard malfunction
- PSU or controller defects
- Firmware or I/O-related failures (non-user induced)
For extended coverage, EZBlockchain Premium Warranty Plans offer up to 18 months protection, advanced replacement shipping, and 24/7 technical diagnostics, ensuring zero downtime for enterprise-grade mining operations.
